Paxton Net2 Installation

We were asked by a management company to carry out a Paxton Net2 installation for their client.

Due to the substantial number of employees, contractors and visitors accessing their premises on a daily basis, they wanted to ensure they could keep track of the movement of people across the site.

Following our initial site survey, we identified that 8 single doors would require the installation of Net2 in order to enhance the security of the studios.

Net2 is a user-friendly and flexible networked access control system designed to make the management of any building incredibly simple and is a networked access control system. It can be administered using one or more PCs and can be monitored and managed from a central location. It is a complete solution that encompasses wired and wireless door entry.

Untitled design (71)

Solution Benefits

  • This Paxton Net2 system can be used in conjunction with single MIFARE® ‘open source’ credentials (cards) for use on multiple different systems or platforms for various purposes. So, each user only needs a single card for multiple functions, including door entry, secure printing, and IT authentication, eliminating the need to carry multiple cards within the building.
  • Net2 Connect software enables system administrators to access and manage multiple sites worldwide via a browser or phone over a WAN. They can programme cards, monitor entry activity, and modify door access rights remotely from anywhere in the world.

Paxton Net2 Installation - Scope of Works

  • We carried out the supply and installation of a Paxton Net2 access control solution on 8 single doors as per the client’s request.
  • All doors are ‘read in’ and touchless ‘push-to-exit’ with break glass units with LED and sounder on one side of each door for egress.
  • A single monitored slimline maglock with door status has been installed on each door.

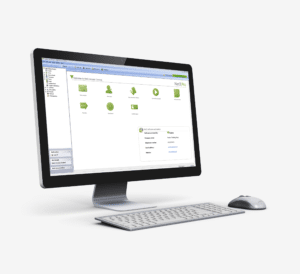

  • We installed a mini-PC and 19” monitor which now runs the Paxton Net2 PRO software. We connected a Paxton Net2 desk top reader to the PC for registering RFID cards

Products Installed

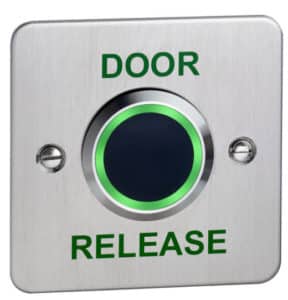

8 x Surface Stainless Steel No Touch Infrared Exit Button

– Surface stainless steel no touch infrared exit button
– Illuminated halo normally red, going green when activated
– Infrared proximity sensor

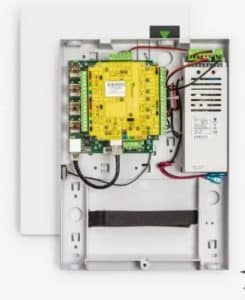

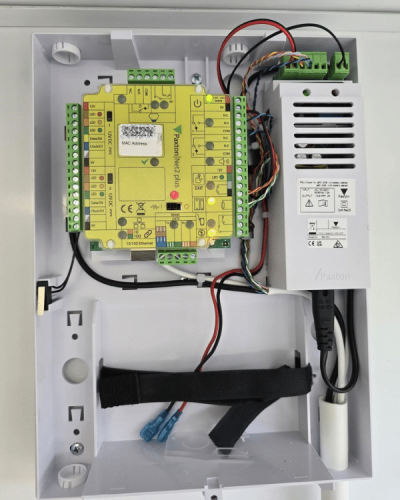

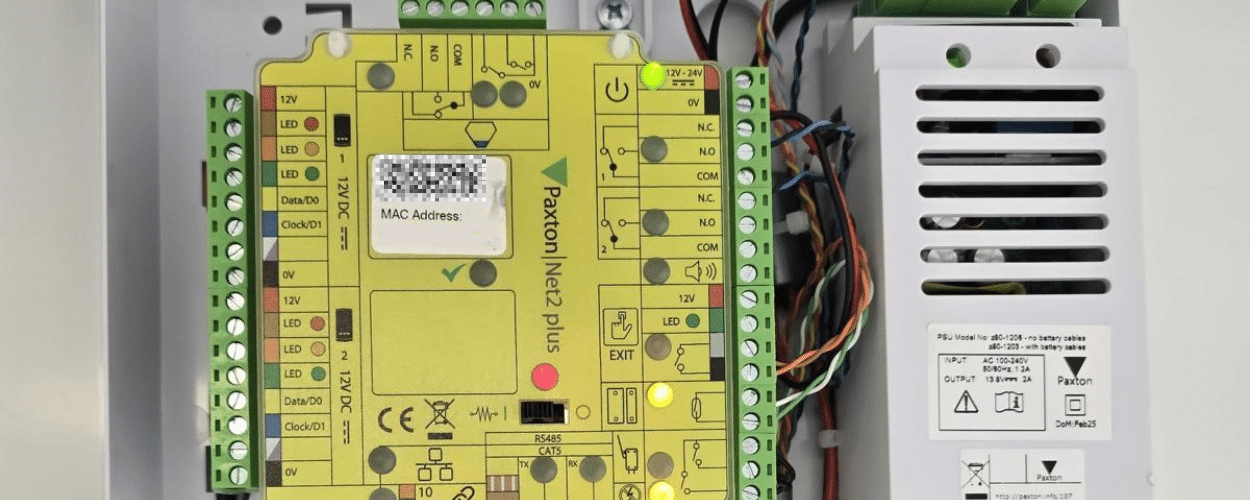

8 x Net2 plus controller unit with in-built 2amp Powers supply.

The Net2 plus control unit connects to the central administration PC using an RJ45 plug into a standard TCP/IP Ethernet network. This greatly increases the flexibility of installation options on sites that have LAN/WAN networks.

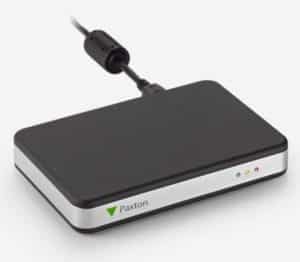

1 x Paxton Net2 Desktop Reader – USB

The desktop reader is designed to sit next to the PC. It is used for adding tokens to a Net2 system. It can also be used for identifying lost tokens. The proximity version also reads MIFARE® tokens.

NET2 PRO
Features

• Landlord tenant
• Card designer
• Timesheet, timeline &  attendance software
• Security lockdown
• Anti-passback
• Fire alarm integration

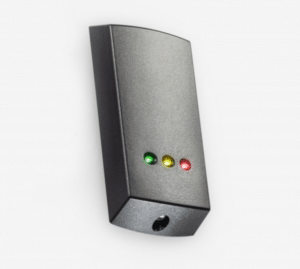

Net2 – Proximity MIFARE® reader, P50

The Proximity P Series MIFARE® reader is designed for seamless integration with Net2 systems. This versatile, multi-format reader supports various access tokens, including MIFARE® Classic.

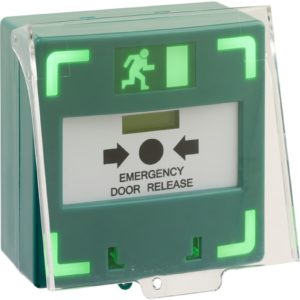

Resetable Break Glass Unit

The Break Glass Unit features built-in LEDs for visibility in the dark, ensuring it remains easily identifiable even during power outages. It also includes a sounder that activates immediately when the glass is broken, providing an audible alert.
